cad2017 v64

Tags： CAD 设计 绘图

CAD2017 is a powerful design software that has demonstrated its exceptional performance and broad applicability across various fields. Its comprehensive drawing and modeling capabilities cater to a wide range of design needs, from architectural to mechanical to interior design. With its built-in materials and textures library, 3D visualization, and animation effects, designers can effortlessly bring their ideas to life with stunning realism.

Enhanced Organization: The new transplant interface simplifies AutoCAD's custom settings by organizing them logically and categorically, making it easier for users to manage and maintain their configurations. Users can also easily generate transplant summary reports, which facilitate data organization during version upgrades or cross-platform migrations.

Improved Compatibility: This feature not only streamlines operations but also enhances compatibility between versions and across different environments, ensuring the integrity and consistency of user data.

Data Import Flexibility: Users can directly import geometry, fills, raster images, and TrueType text from PDF files, greatly expanding the sources and flexibility of data acquisition.

Precision Control: While the precision of data is limited by the original quality of the PDF file and the supported object types, this feature still provides designers with the ability to quickly extract design elements from existing documents.

Software Features

Security and Convenience: Through the Autodesk A360 platform, users can securely share design views without compromising the security of the DWG file itself. This link-based sharing method protects design assets and enhances collaboration convenience.

Wide Compatibility: The platform supports access through various web browsers, including Chrome and Firefox, ensuring that the viewing of design views is not restricted by specific software or platforms.

Design Assistance: This feature provides designers with more intuitive and precise design assistance tools. Associated center marks and centerlines automatically follow the changes in elements like arcs, circles, lines, and polylines, reducing manual adjustments.

Compatibility Consideration: The introduction of new features does not replace existing methods but serves as a supplement, offering users more options.

Precise Positioning: On attached coordinated models, users can specify precise positions using standard 2D endpoint and center object snap features. This is particularly important for multi-model collaborative design, significantly improving design accuracy and efficiency.

64-bit Exclusive: It is important to note that this feature is only available for 64-bit AutoCAD versions, reflecting AutoCAD's adaptability to modern computing environments in terms of performance optimization and feature expansion.

Installation Steps

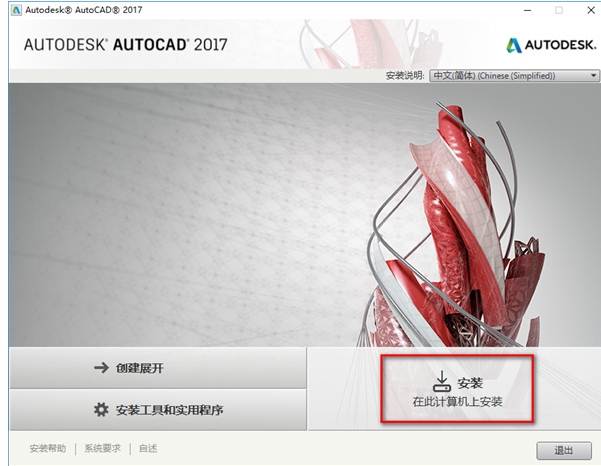

Download and double-click the file to extract, then open the installation page.

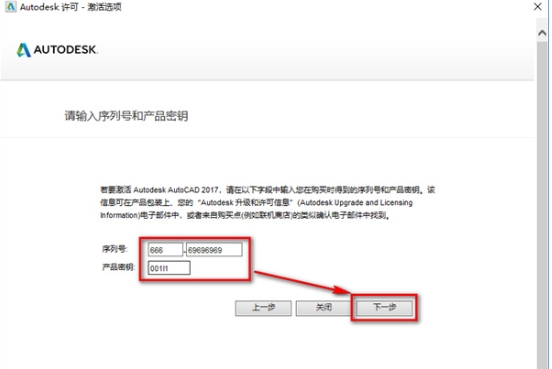

Double-click the exe file and follow the on-screen instructions to install.

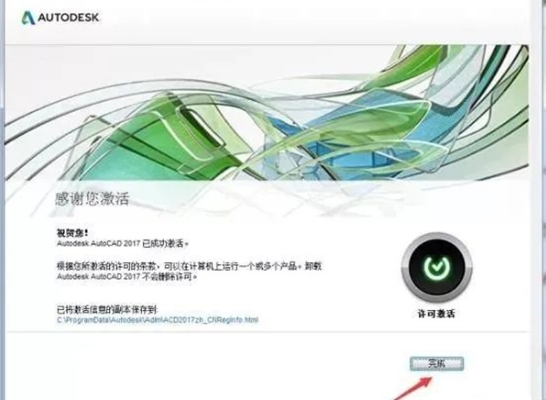

Wait patiently for the installation to complete and then begin using the software.
